BOSS Quality in Space-Saving Designs for Your Pedalboard

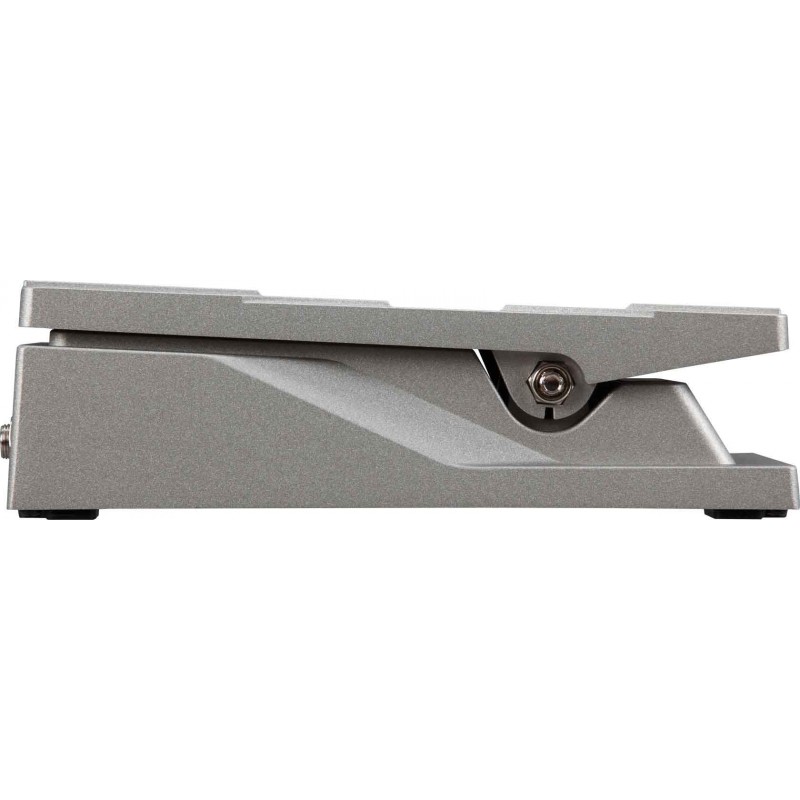

The FV-30H and FV-30L are compact foot volume pedals with kickin' new designs. They've been specially created for saving space on your pedalboard while maintaining the trusted BOSS standard for sound quality, reliability, and durability. These pedals are 100-percent professional grade, aluminum die-cast units, and feature smooth pivot action that supports subtle changes in volume control. Thanks to their small size, the FV-30H and FV-30L offer a huge advantage for traveling musicians and gigging players who need to maximize pedalboard space.

As with the other models in the FV series, two different pedal versions allow you to choose the best type for your specific application:

FV-30H-A high-impedance pedal (with dedicated tuner output) that's best for connecting directly to an electric guitar or bass.

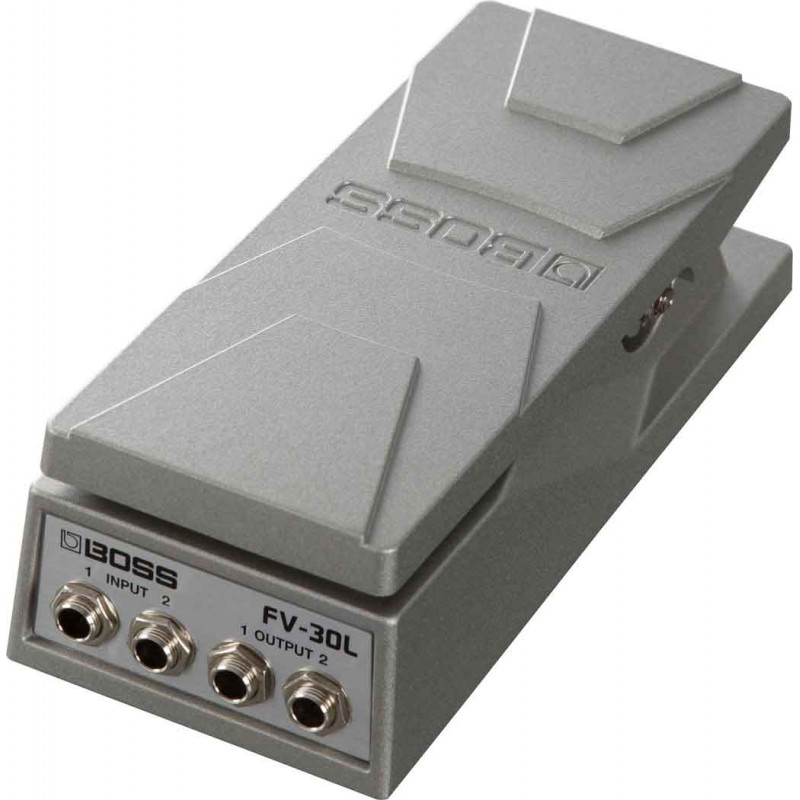

FV-30L-A low-impedance pedal equipped with stereo input/output for stompboxes, keyboards, and other digital instruments.

• Space-saving volume pedals with rugged aluminum die-cast body designs
• Silky feel with smooth pivot for maximum control
• Tuner out jack (FV-30H)
• Stereo input and output (FV-30L)
• FV-30H for direct connection to high-impedance gear like electric guitars
• FV-30L for low-impedance gear like synthesizers and stompboxes
• SPECIFICATIONS
  Connectors(FV-30H)
  INPUT jack: 1/4-inch phone type
  OUTPUT jack: 1/4-inch phone type
  TUNER OUT jack: 1/4-inch phone type
  Connectors(FV-30L)
  INPUT 1, 2 jacks: 1/4-inch phone type
  OUTPUT 1, 2 jacks: 1/4-inch phone type
  Accessory
  Owner's Manual
  SIZE AND WEIGHT
  Width
  80 mm
  3-3/16 inches
  Depth
  192 mm
  7-9/16 inches
  Height
  58 mm
  2-5/16 inches
  Weight
  840 g
  1 lbs. 14 oz.
  SIZE AND WEIGHT (MAXIMUM HEIGHT)
  Width
  80 mm
  3-3/16 inches
  Depth
  192 mm
  7-9/16 inches
  Height
  92 mm
  3-10/16 inches
  Weight
  840 g
  1 lbs. 14 oz.
